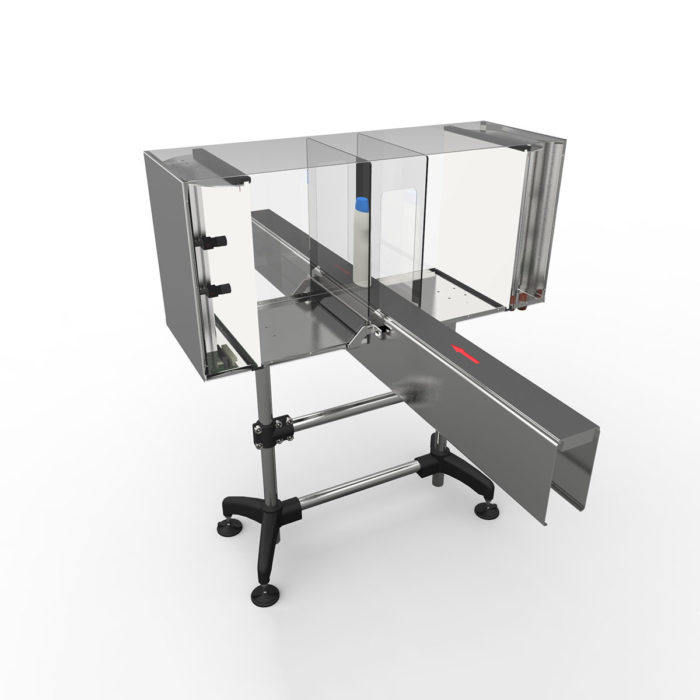

The innovative Visiolabel inspection system from E2M delivers four side views and one top view for optimal product presentation inspection. With Visiolabel you won’t need to worry about labels being wrinkled, tilted, marred, inaccurate or missing. Read More
  • This field is for validation purposes and should be left unchanged.

Table of Contents

Highlights

  • Inspection outside the labeler, on the conveyor
  • Compact inspection tunnel with protective glasses
  • Intuitive computer system and interface based on Windows 10
  • Easy and simple format change
  • Intuitive regulation of control parameters
  • Remote control via internet and remote diagnosis
  • Provides production statistics
  • Low maintenance cost
  • Integration with external inspections (barcode reader, “anti-theft” label)
  • Rejection signal management
  • Structural adjustment for label inspection on 3 sides of the container
  • Filling level control can be added

Applications

For rectangular, triangular and oval oriented container labels including paper and self-adhesive (front, back, strip, collar, fiscal seal), and shrink sleeves and seals. Includes the following applications:

  • Oils and vinegar
  • Cosmetics
  • Household products
  • Spirits
  • Milk, juice, soft drinks

Standard Features

  • Up to 5 CMOS B / W 1.3 Mp cameras
  • Lighting system with adjustable LEDs
  • USB, Ethernet
  • Latest generation INTEL processor
  • Windows 10 based computer system and interface
  • 17” TFT touch screen for operator communication
  • IP67 stainless steel enclosure for cameras
  • Replacement Algorithms
  • Container position control by sensor and encoder
