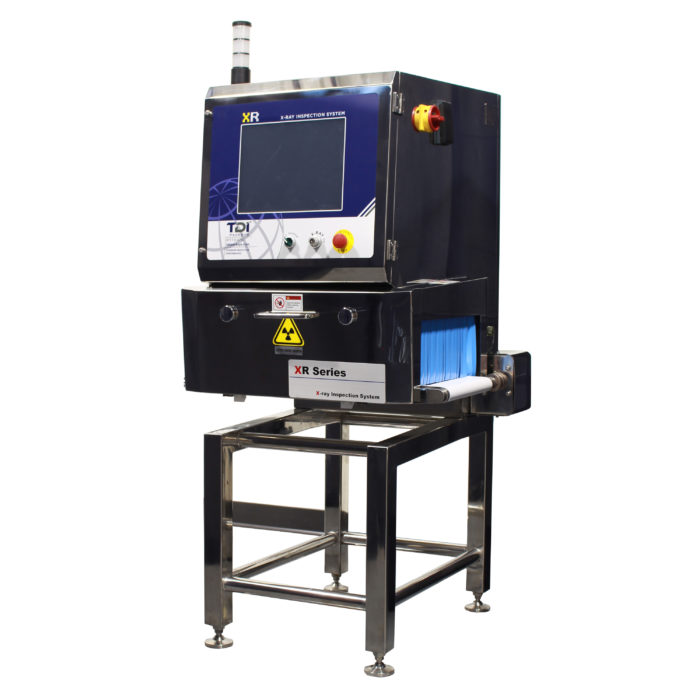

TDI Packsys XE series x-ray inspection systems are ideal for users looking to upgrade from metal detectors and achieve significantly greater levels of sensitivity, stability, quality control and traceability. In addition to detecting all metals, users are now able to find glass, stone and other dense contaminants. Unlike metal detectors, these systems can inspect products packaged in foil and vacuum metalized films, as well as those in metal containers, without any loss in sensitivity.

These systems offer exceptional stability and performance for products with high conductivity, including protein products, and high salt content snacks and baked goods. XE series x-rays are a lower energy, economical option for customers who require all of the benefits of using x-ray inspection, but do not necessarily require the most demanding levels of sensitivity. But don’t let the name fool you – XE Economical X-Ray Inspection systems still offer incredible sensitivity levels – find stainless steel as small as 0.5mm and also detect non-metal contaminants including stone, glass and other dense items. Plus, XE systems will shield metal used in packages, such as that found in metal cans or foil lids, enabling for complete product inspection. If you require product inspection, but cannot use metal detection due to foil pouches, a high salt or high moisture content product, then consider the XE series. You will benefit from all of the advantages of our XR series, including image logs and exceptional sensitivity, but at a price point that is refreshingly economical and within your budget.

The XE series has a very compact footprint, easily fitting into most production lines. X-ray bases (stands) are available in a range of sizes and configurations to fit many applications and can be customized as needed.

Applications

XE series x-ray inspection systems from TDI Packsys are the perfect solution for those with compact products that are unable to be metal detected, or for those needing to expand the range of foreign materials being detected. Priced with your budget in mind, the XE series provides advanced x-ray capabilities at an affordable cost. Any products less than 6 inches in height and 12 inches in width can be easily inspected using the XE series.

For manufacturers with environments, products, or quality standards that cause metal detectors to struggle, the XE series offers the perfect inspection solution.

Product Highlights

  • Ideal for the x-ray inspection of packaged food products, especially those packaged in metalized film, foil or metal containers. A great option for high conductivity products that challenge even the most advanced metal detectors
  • Provides the ultimate in safety and security for your company, brand and customers
  • Compact footprint to fit in almost any production line
  • Exceptional metal sensitivity – find as small as 0.5mm stainless steel and 0.3mm x 2mm stainless steel wire
  • Beautiful, matte fingerprint- and smudge-resistant stainless-steel finish
  • Metal Detector Upgrade — Ideal for bakeries or inspection of products packaged with foil or other metalized elements
  • Economical — Very competitively priced, lower than many metal detectors

Standard Features

Each of our X-ray systems come with the training, service and support your staff needs — TDI Packsys is with you every step of the way to make sure you are 100% satisfied. Additionally, TDI Packsys provides annual testing, certification and maintains FDA registration to ensure your system remains in complete and continual compliance with all applicable regulations.

  • Full Range of Detection – Metallic and non-metallic contaminants including glass, ceramic, stone, bone, hard rubber and hard plastic.
  • Easy to Use and Clean – Intuitive Windows®-based user interface, simple assembly and disassembly.
  • Does not require an operator to monitor for contaminants – System will automatically identify and, when paired without optional rejection conveyor, remove any packages suspected of having contaminants.
  • Flexible – Suitable for a wide range of product types and package formats.
  • Customizable Programming – TDI Packsys x-ray systems use proprietary software which allows custom generator strength, speed, and algorithms for each program.

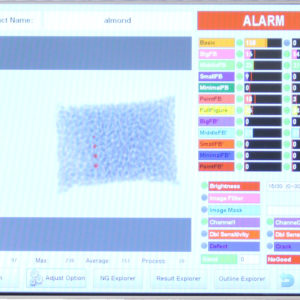

  • Windows-Based Software – Easily navigated Windows-based software allows the user to quickly change between programs. A real-time image of the current product allows operators to quickly locate and identify contaminants.
  • Detailed Data Logs – TDI Packsys x-rays provide detailed logs on production rates, times and contamination %s which can be easily accessed on the HMI or downloaded via ethernet or USB.
  • Remote technical and programming support to maximize uptime and performance
  • Password restricted operator / administrator access

All X-ray inspection systems use componentry from global market leaders, including VJT, Siemens and Schneider. Each unit is constructed of 304 stainless steel with a stunning mirror finish (optional sand-blasted finish available). X-ray inspection systems from TDI Packsys can be used in virtually any environment, and all areas are rated for full wash down with our IP69K option.

Why We Are the Best

The XE series of x-rays from TDI Packsys offers unmatched value to your inspection process. For the same cost as some metal detectors, you are able to detect glass, stone, bones, rubber, hard plastics, and a variety of other foreign materials while significantly improving detection of all metallic contaminants.

Needing to use an x-ray inspection system in your process shouldn’t automatically come with a hefty price tag; XE Economical X-Ray Inspection Systems provide the long-awaited alternative for manufacturers trying to improve their quality standards.

FAQs

XE economical x-ray systems are designed for the inspection of low-format products in most packaging types, and can inspect products up to 6” in height and 15” in width . The XE series provides exceptional performance for those products that would traditionally be metal detected, but cannot be due to metallic packaging or high product effect caused by the nature of the product.

The XE series is specifically designed for applications that don’t require the higher power of other x-ray systems. For many food products, great inspection sensitivities can be achieved with the XE’s standard power and configuration, and using a stronger, more expensive system would have minimal impact on performance.



Use these systems to detect down to 0.5mm metal and 2.0mm glass – they’re ideal for manufacturers looking to incorporate the superior performance of x-ray technology, without any unnecessary modifications. To find out exactly what sensitivities the XE series can achieve on your specific product, TDI Packsys offers no-obligation validation testing where we can simulate the inspection of your product on a variety of different systems.

The use of x-ray inspection is incredibly safe. Ambient x-ray emissions are less than 1 microsievert per hour, well below FDA standards. Both software and hardware are equipped with extensive safeguards, which constantly inspect the machine’s state, and prevent accidental emissions caused by operator error or system malfunction. For example, if the operator accidentally opens an access panel during operation, x-ray generation is stopped immediately. All TDI Packsys x-rays are FDA certified, and are compliant with all UK, EU and FDA regulations to ensure safe use. Radiation from TDI Packsys x-rays is produced by an electronic generator, rather than a radioactive material, which means there is no radiation being produced when the system is not running. During operation, radiation levels produced are incredibly low, and our intelligent body design and use of protective curtains in the product tunnel keep radiation to less than 1/5th the FDA allowable limit. Products inspected by x-ray systems remained unaltered after inspection, and are 100% safe for use or consumption. With the numerous safety features and redundancies, operating an x-ray inspection system is 100% safe for both people and products.

X-ray inspection systems work by producing beams of high frequency electromagnetic radiation (x-rays) in a generator. These beams are then directed at a desired target, which will absorb some of the rays while allowing others to pass through. On the opposite side of the target from the generator sits a detector which then reads the EM waves that make it through the target.

The higher the density/larger the size of the product, the less radiation will pass through. The result is an image produced by the detector which details the high and low density areas throughout the target. This is the same principle seen when making shadow puppets on a wall. Some light is blocked by the puppet, and the resulting shadow gives detail on the shape of the puppet. With x-rays, that detail is also internal.

The main difference between metal detectors and x-ray inspection systems is in the methodology of how each machine inspects for foreign materials. Metal detection relies on conductivity to locate stainless, ferrous and non-ferrous metals in product, while x-ray uses density differences between the product and foreign bodies to perform inspection. X-ray technology allows for a far greater range of foreign materials to be detected, including metal, glass, stone, bone, rubber, gasket (both metal detectable and non-metal detectable), plastic, and various other mid and high-density items. As a general rule of thumb, x-ray inspection systems are able to detect contaminants at a much smaller size than metal detectors.

Some products are limited by their composition and packaging with which inspection systems can be used. Products with metallic packaging, such as those with metallized foil, cannot be accurately inspected with a metal detector, and require the use of an x-ray system. The best way to determine which option is best for your application is to receive a consultation or free, no-obligation validation testing. We can test your exact product on a variety of different systems using certified test cards, or foreign material samples you provide, to offer you a formal report on the capabilities and expected performance of each type of technology. At TDI Packsys, we believe validation testing on your specific products is an integral step in choosing the right system for your needs.

No PPE is required to be worn while operating x-ray inspection systems from TDI Packsys. The use of lead lining and protective curtains in the x-ray mitigates radiation from the generator, allowing only a fraction of the radiation used in inspection to exit the system. The FDA regulates these systems, and has set a standard of 5 μSv/hour as the safe level of radiation. X-ray systems from TDI Packsys emit doses of less than 1 μSv an hour, well below the FDA allowable limit. Every day, we are exposed to background radiation naturally produced by the sun and various environmental factors. Each year, the average person is exposed to 2,400 μSv of this background radiation, a higher dose than you would get standing next to an active x-ray inspection system for more than 3 months straight.

Food products inspected by x-ray remain unchanged. Because the radiation used in x-ray inspection systems is comparatively low to the natural background radiation found in every setting, there is no change to the nature of the product during x-ray inspection. There is also no possibility of the product itself becoming radioactive. The process by which stable compounds become radioactive is known as activation, and can only be caused by neutron radiation, a specific type of radiation that isn’t used for x-ray inspection. The type of radiation used by x-ray inspection systems is actually a type of light, with a wavelength longer than the visible light we are able to see. Because of this, exposure to the x-rays inside an inspection system is similar to taking a photo with the flash on: the product is quickly illuminated, but remains completely the same once the exposure is finished.

X-ray systems from TDI Packsys are able to detect a range of materials in clean products, including stainless steel, ferrous metal, nonferrous metal, glass, ceramic, stones, bone, rubber, gasket (both metal detectable and non), plastics, and some organic materials. The exact size and range of materials able to be detected by x-ray varies by product type and specific process, and our formal no-obligation validation test is the best way to determine what is possible for your products. TDI Packsys consistently detects materials and sizes that other vendors cannot. For more information on what can be detected in your process, contact us for a free consultation or a validation test.

While all x-ray equipment utilizes the same advanced technology to inspect products, the actual components used and the size of the equipment has a significant impact on the price of the x-ray system. Stronger generators, higher configuration detectors, and more advanced software will all increase the cost of an x-ray system. For products that are low format and don’t need the same power as other, denser packages, TDI Packsys proudly offers our XE series of economical x-rays that start around $38,000. These systems, while being economically priced, still offer exceptional sensitivities on all the same foreign material types as our other x-ray systems. Like all industrial equipment, if specific construction is required to raise the IP rating for washdown environments, or to modify the integration of the system, you can expect to see a marginal increase in price. The easiest way to determine exactly how much the right x-ray system would cost for your specific application is to contact us for a no-obligation consultation and system proposal.

Spec Table

Name

XE Series X-Ray Inspection Systems

Model(s)

XE-1815; XE-2815; XE-3815

X-Ray Tube

MAX 60kV, 80W

Inspection Width

180mm – 380mm (7.09 in – 14.96 in)

Inspection Height

150mm (5.9 in)

Maximum Product Weight

10kg (22 pounds)

Detection Sensitivity

Results are typical. Actual sensitivity performance with customer product must be determined by validation testing.

SUS Ball Φ 0.5mm SUS wire Φ 0.3 * 2mm Glass Ball 1.5mm Ceramic Ball 1.5mm

Conveyor Speed

10 – 90 meters / minute

Display Screen

Full-color TFT 15″ Touch Screen

Operating System

Windows 7 Professional Embedded

Connectivity

USB and Ethernet

Product Management

Complete production log

Image Management

Save/Print/Analyze

Parameter Adjustment

Auto or manual programming

Power

220V, Single Phase, 15 amp

Construction

SUS 304

IP Rating

54 or 65
