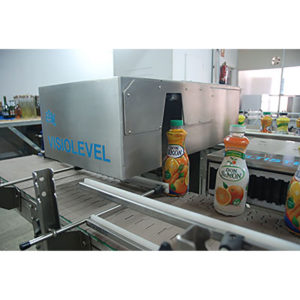

Visiolevel from E2M detects and verifies fill levels for transparent bottles and containers in high frequency production lines. As containers pass through the protected inspection enclosure at high speed, the system captures an image of the neck and cap, which is then analyzed and processed to detect defects and deviations. System features one or more cameras depending on the model and customer needs. Read More
Contact Sales
  • This field is for validation purposes and should be left unchanged.

Download Brochure

Table of Contents

Highlights

  • Easy installation on existing conveyors
  • Robust, compact and sturdy design
  • No maintenance required
  • Long life system and fast amortization

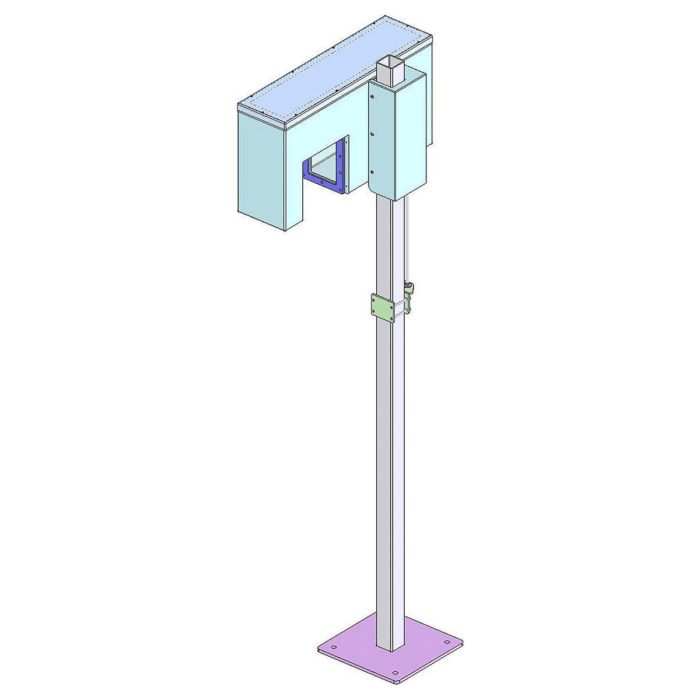

  • Automatic height adjustment of the inspection bridge while changing format using a linear actuator

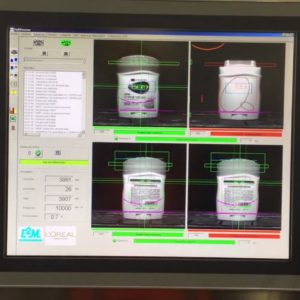

  • Intuitive user interface
  • Quick and easy format change
  • Parameter and tolerance settings for each format
  • Remote control via internet and remote diagnosis
  • Provides real-time production statistics
  • Rejection signal management

Applications

For fill level inspection of transparent containers including:

  • Oils and vinegars
  • Cosmetic products
  • Detergents and cleaning products
  • Spirits, whiskeys
  • Juices, soft drinks and milks

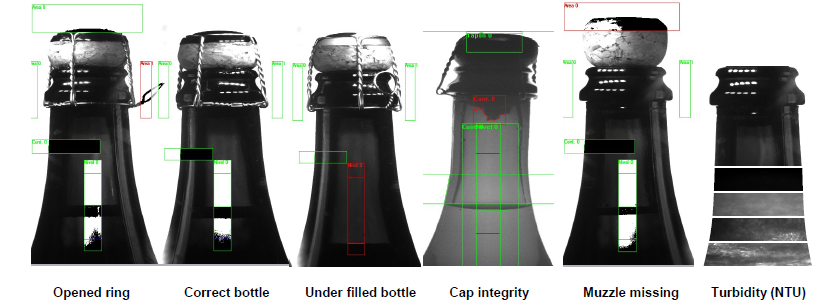

Complete turnkey installation for inspection of:

  • Fill Level:
    • overfill/underfill/no fill
    • Algorithms assuming foam or swell effects
  • Closure:
    • Missing closure
    • Closure height (incorrect insertion or seating)
    • Wrong closure
    • Integrity of cap base (cork ring OK)
  • Muzzle
    • Presence/absence
    • Well formed
    • Vertically of wire ring (2views)
  • Turbidity (optional module)

Standard Features

  • 1 or 2 cameras CMOS b / n of 1.3 Mp. (standard equipment)
  • LED backlight lighting system
  • High performance production, up to 90,000 u / hour depending on the inspections to be performed
  • IP67 stainless steel enclosure for cameras
  • Latest generation INTEL processor
  • Windows 10 based computer system and interface

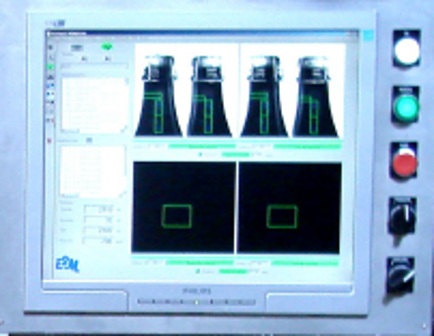

  • 17” TFT touchscreen for operator communication
  • Keyboard with mouse
  • USB, Ethernet
  • Container position control by sensor and encoder
