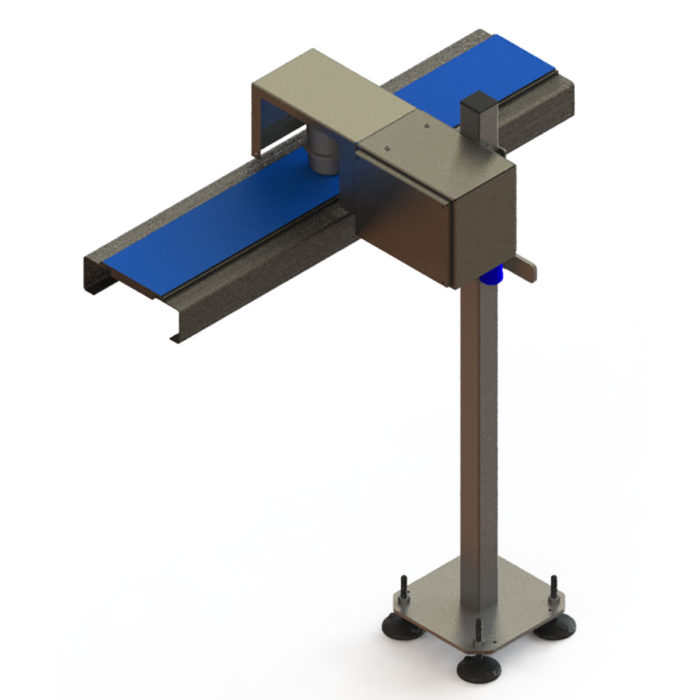

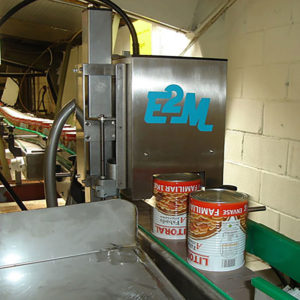

The E2M Verifitext inspects and verifies codes marked on boxes and other containers. When the container reaches the inspection area, the system takes a high-resolution photo of the marked surface. The system analyzes 100% of the units produced, without any physical manipulation needed. Defective units are both detected and rejected, helping reduce operating costs while meeting quality standards. Read More
Contact Sales
  • This field is for validation purposes and should be left unchanged.

Download Brochure

Table of Contents

Highlights

  • 100% in-line production inspection
  • Not destructive
  • No physical manipulation needed
  • Near 0 failure rate
  • Intuitive user interface with minimal operator training
  • Simple input of parameters
  • Adjustable inspection accuracy
  • Quick and easy format change
  • Remote technical assistance (Ethernet or modem), online analysis and remote diagnosis from E2M
  • Provides real-time production statistics
  • Rejection signal management

Applications

For use in analyzing and inspecting:

  • Printing with inkjet, pad printing, thermal transfer, punching, and laser
  • All types of codes, texts, lots, dates and more
  • Verification of marking: EAN, Data Matrix and more

Standard Features

  • Turnkey solution mounted on the existing conveyor for the inspection of marked containers
  • Maximum production 800 u / min (48,000 u / h)
  • High speed conveyor: 3m / s
  • 1 CMOS 1.3 Mp B / W camera
  • Lighting system with adjustable high efficiency LEDs
  • USB, Ethernet
  • Latest generation INTEL processor
  • Windows 10 based computer system and interface
  • 17” TFT touch screen for operator communication
