E2M Visiocap Vision Systems
E2M Visiocap Vision Systems
E2M Visiocap Vision Systems
E2M Visiocap Vision Systems

E2M Visiocap Vision Systems

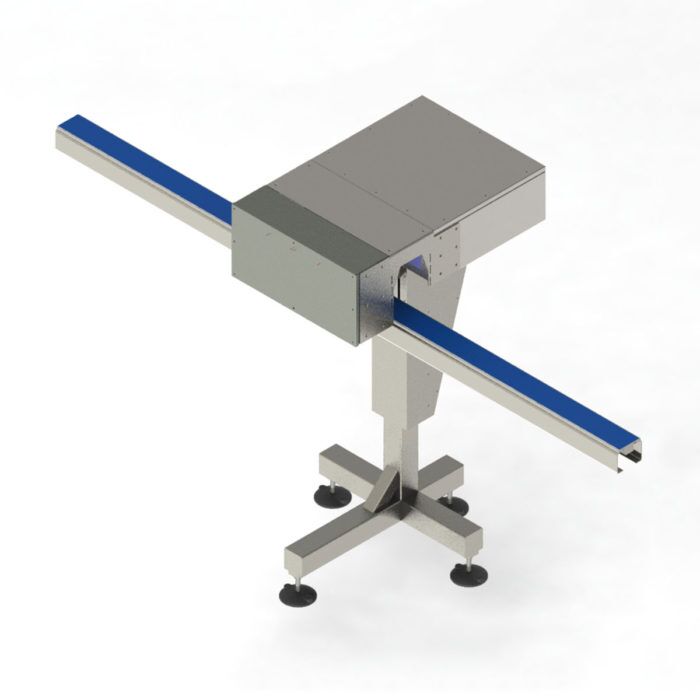

Visiocap from E2M is a 120˚ in-line inspection system that detects minimum capping defects in fast-moving production lines. By capturing three unique views of the plug, Visiocap can locate defects that aren’t detected in typical systems, such as inclined plugs, missing plugs, inaccurate fill levels and more. It’s LED lighting system and 17″ touchscreen makes operation easy to use and easy to read. Read More
  • This field is for validation purposes and should be left unchanged.

Table of Contents

Highlights

  • No maintenance required
  • Long life system and fast amortization
  • Automatic height adjustment of the inspection bridge
  • Intuitive user interface
  • Quick and easy format change
  • Parameters and tolerances setting for each format
  • Visual adjustment of control parameters
  • Provides real-time production statistics
  • Remote control via internet and remote diagnosis
  • Rejection signal management

Applications

  • For use in monitoring:
    • Capper heads
    • Filler valves
    • Detection of fallen bottles or blown bottles
  • For use in the following applications:
    • Bottled mineral water
    • Wine
    • Sparkling wine and champagne
    • Spirits
    • Beer
    • Oils and vinegars
    • Pharmacy and cosmetics
    • Juices and soft drinks

Standard Features

  • Up to 3 CMOS B / W cameras of 1.3 Mp.
  • LED lighting system
  • High performance production, up to 90,000 u / hour depending on the inspections to be performed
  • IP67 stainless steel enclosure for cameras
  • Intel next generation processor
  • Windows 10 based computer system and interface
  • 17” TFT touch screen for operator communication
  • Keyboard with mouse
  • USB, Ethernet
  • Container position control by sensor and encoder
  • Possibility of implementing a superior zenital chamber
