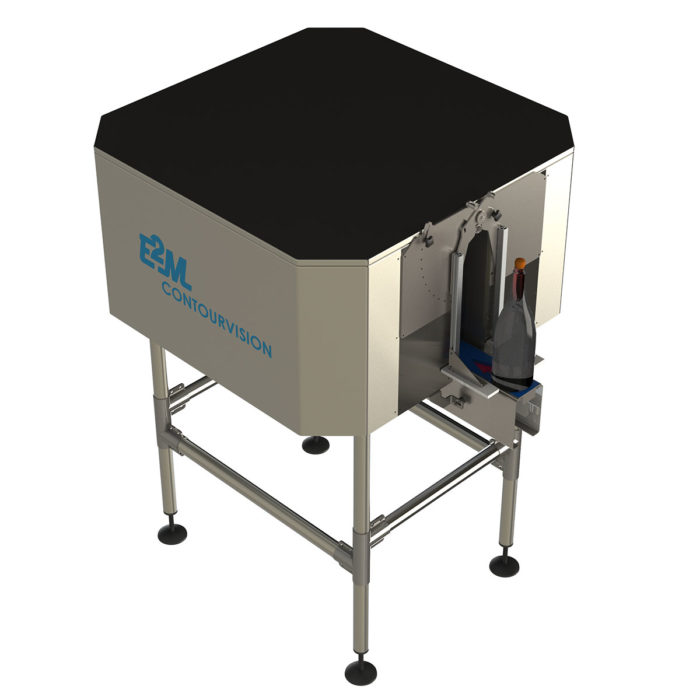

Contourvision 360˚ from E2M is a label inspection system for non-oriented bottles. This self-learning system uses advanced vision algorithms to measure the parameters and characteristics of each bottle to identify inconsistencies or defects. Easily configured, easy to clean, and easy to use, Contourvision 360˚ comes in a number of configurations and options. Read More
  • This field is for validation purposes and should be left unchanged.

Table of Contents

Highlights

  • Compact, linear system
  • Flexible multiformat system
  • Quick and convenient format change; compatible with all types of formats
  • Robust, with floodgates and safety cover
  • Intuitive computer system and interface based on Windows 10
  • Remote control via internet and remote diagnosis
  • Provides production statistics
  • Vision algorithms developed by E2M, allowing more flexibility

Applications

For use in monitoring label inspections on non-oriented bottles.

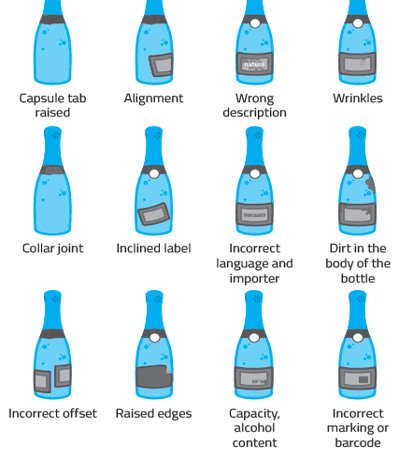

Can inspect for:

  • Presence of label
  • Integrity of labels (defective bonding, detached label, bent or damaged corners, wrinkles …)
  • Superficial defects in the bottle
  • Absolute and relative position of the labels, collar, medallion, fiscal seal, etc.
  • Inspection of defects in the capsule such as breaks
  • Identification and reading of different types of barcodes
  • Identification and coding of different types of 2D Codes
  • Character reading (expiration date, lot, quantity…)
  • Pattern inspection (capacity, family, add…)
  • Additional analysis: If necessary, other vision algorithms can be added to perform complementary inspections (level, plug, ruffled…) or even vision tools to control engravings or reliefs.

Standard Features

  • From 4 to 6 CMOS Cameras 1.3 Mp B / N
  • Surround lighting with dimmable LEDs
  • 2 x USB, 1 x Ethernet
  • Intel latest generation processor
  • User Interface Windows 10
  • 17” touchscreen monitor
  • IP65 stainless steel enclosure
  • Algorithms of reconstruction at 360º of the surface of the bottle
  • Encoder to control the position of the containers.
