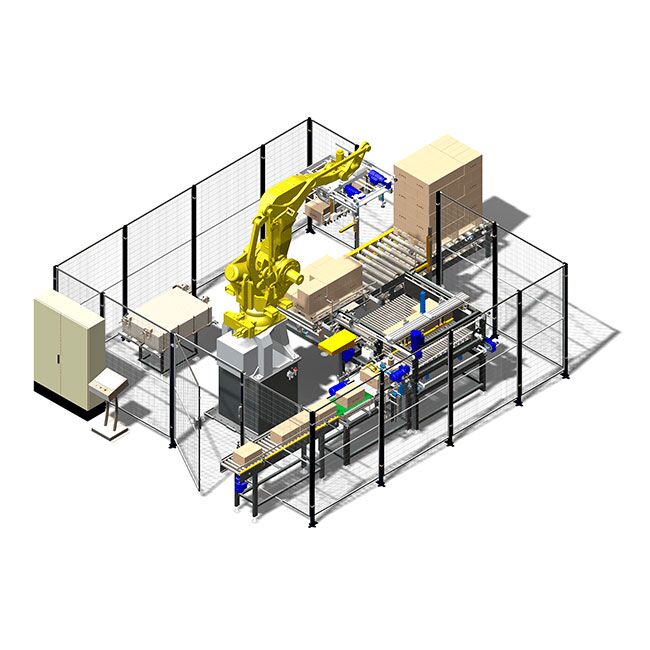

TDI Packsys powered by IPLA brings you customized palletizing solutions for your specific application. Mi Pal Industrial Palletizers rotate boxes using a rotating arm, making these systems exceptionally versatile.
  • Up to 30 boxes/min per line
  • 90% of pattern versatility
  • 2 palletizing lines
Read More
Contact Sales
  • This field is for validation purposes and should be left unchanged.

Table of Contents

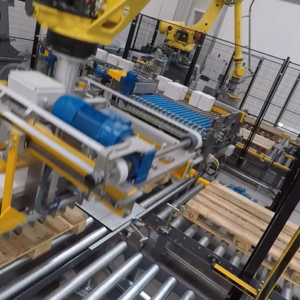

The Mi Pal palletising cell allows you to rotate boxes through a rotating arm. This feature, with the possibility of making 1 gap between boxes on the forming table, make this a 100% versatile product.

Furthermore, its comb gripper and triple pressure plate lift boxes from beneath while holding them from above, thus ensuring palletising of the box in perfect condition, even with previous sealing errors and allowing variability in box size.

Product Highlights

  • Production of up to 30 boxes/min. per line or 5 cycles/min.
  • Adaptable to all patterns
  • Up to 2 palletising lines
  • Entry boxes height: between 800 and 2,400 mm
  • Robot: 315 kg. Payload: 100 kg
  • Pallet size: 1200×800 mm and 1200×1000 mm

Features & Advantages

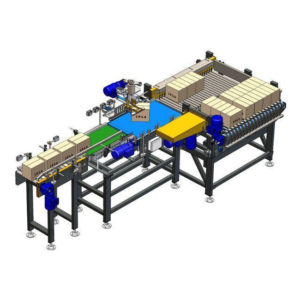

Table

• 90° rotator
• Creation of 1 gap per row

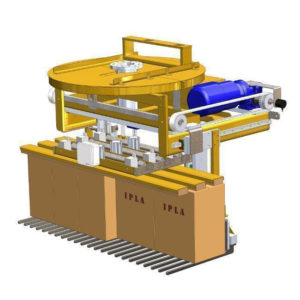

Gripper

• Secure and versatile
• Packets of up to 400x1200 mm

IPLA Robot Software

The control software developed by IPLA provides total control of the pallet cell without needing to use the robot console, making use easier and removing the need for a programmer to make modifications.

The touch-screen control interface allows manual control of all cell elements, displaying alert zones with active photocell indicators. There is also the possibility of configuring new palletising formats, generating patterns by indicating the movements that each box must make. Furthermore, it offers production information like the number of palletised boxes and pallets, rate of production and more.

Optional Features

This cell offers the possibility of the robot placing cardboard interlayers between pallet layers by installing a cardboard store within the cell. The format change can also be automated by installing self-adjusting centering guides in the box infeed conveyors. All of our palletisers have the option of a remote assistance system via Wi-Fi.

Additional Information

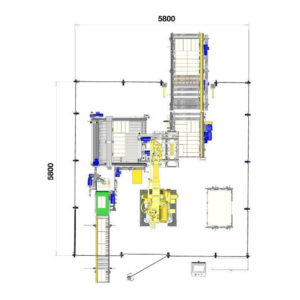

Robot Cell Floor Plan (1 Line)

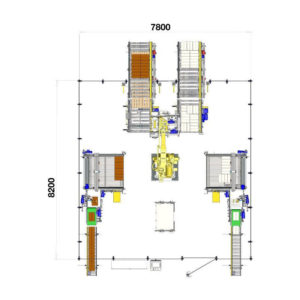

Robot Cell Floor Plan (2 Lines)

Why We Are the Best in Industrial Palletizers

TDI Packsys powered by IPLA brings you customized palletizing solutions for your specific application. Our development of multiple end-of-line solutions across some of the most diverse production configurations ensures vast knowledge and experience in palletizing of all kinds of packaging.
