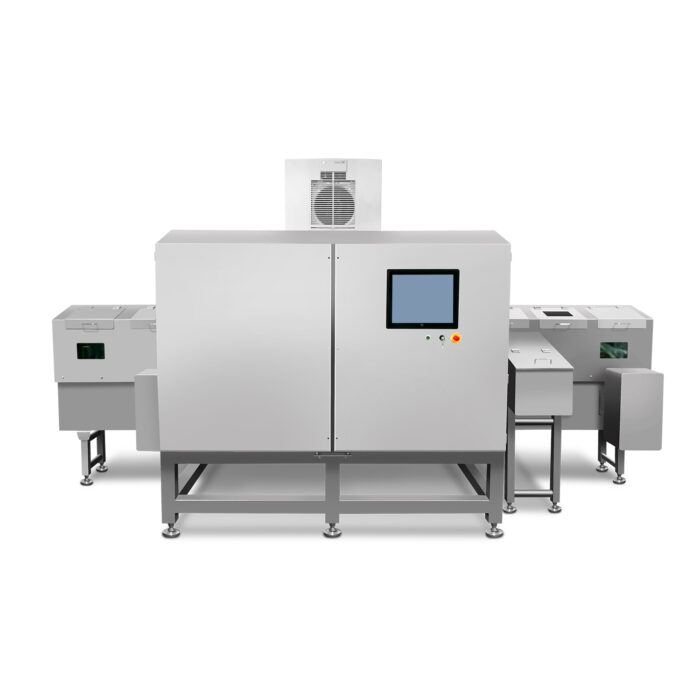

RXP-2025SO – Triple-Beam X-Ray Inspection Systems

RXP-2025SO triple-beam x-ray inspection systems offer premium performance. Use them to detect a variety of miniscule contaminants in even the most difficult products. They catch all metals (both fragment and wire), as well as glass, hard plastic, rubber, ceramic, bone and other high-density contaminants down to 0.3mm in size. Read More

Name*
First Name Last Name
Company*
Phone Number*
Email Address*
Message*
Name
This field is for validation purposes and should be left unchanged.

The RXP-2025SO triple-beam x-ray is a premium performance x-ray inspection system capable of inspecting a wide range of products and detecting a variety of miniscule contaminants in even the most difficult products. In addition to catching all metals (both fragment and wire), the RXP-2025SO will find glass, hard plastic, rubber, ceramic, bone and other high-density contaminants down to 0.3mm in size. No other x-ray system can approach the performance of the RXP-2025SO triple-beam x-ray.

The RXP-2025SO is specifically designed for the inspection of jarred, bottled and canned products, as its unique triple beam inspection technology provides superior detection for all product areas. Where other systems will encounter blind zones in the product, the RXP- 2025SO triple-beam x-ray utilizes multiple detection angles and partitioning to provide complete and redundant inspection coverage. Multi-aspect inspection further enhances the success rate of contaminant detection, regardless of the contaminant’s orientation in the product.

The RXP-2025SO triple-beam x-ray is the only choice for the absolute best available contaminant detection performance for all jar, bottle or canister packaged products.

Applications

The RXP-2025SO triple-beam x-ray from TDI Packsys is specifically designed for the inspection of jarred, canned, or bottled products. Its unique configuration allows for products in a variety of packaging types, sizes, and shapes to be inspected with the highest level of confidence.

Combining the advanced technology and design of the RXP-2025IO single-beam and RXP-2025DH dual-beam x-ray inspection systems, the RXP-2025SO triple beam is the ultimate in foreign material inspection for all cans, jars, bottled and tubs. Combined with fully integrated side transfers, infeed/outfeed conveyor sections, and an automatic reject, the RXP-2025SO has had every aspect designed with the beverage and canned/jarred food process in mind.

Product Highlights

Exceptional Quality – The most reliable jar and canister x-ray inspection system available
Adjustable Point of View – Three X-ray beams deliver multiple adjustable views for many types of jars, bottles, cans and more
Highly Accurate – Triple-beam technology provides unmatched contaminant detection accuracy
Triple beam inspection – three distinct inspection device sets, triple image analysis
No blind areas – intelligent partitioning ensures the industry’s best sensitivity
Multiple, advanced algorithm detection – exceptional contaminant detection performance
Large capacity – high speed polymer chain belt and twin 750W SEW motors
Operator safe design – designed to be well below FDA limits for X-ray emissions – Cat 3 safety circuit ensures immediate shutdown if improper use or entry occurs during operation
Sealed tunnel – keeps products moving and securely on the conveyor within the tunnel
Anti-jamming design – software and hardware safe-guards to prevent product jams
Ultra-fast reject system – suitable for high speed production lines

What Makes the RXP-2025SO Triple Beam X-Ray Inspection System Different?

While the single-beam x-ray system from TDI Packsys uses strategic positioning of its components to provide a complete inspection of the container bottom, and the dual-beam utilizes multiple sets of generators and detectors to achieve redundant, multi-aspect inspection coverage, the RXP-2025SO triple-beam x-ray inspection system combines these two revolutionary approaches to provide the absolute best in jar, bottle and can inspection.

The RXP-2025SO uses three separate sets of generators and detectors (one looking down on the product and two providing offset main body inspection), to achieve the highest level of inspection sensitivity and performance in the world.

Product first passes through the top down single beam inspection zone. This zone ensures 100% inspection of the container bottom, including behind any domed or raised areas. Top down inspection also magnifies the overall contaminant detection result versus dual beam only systems by offering a 3rd, unique inspection aspect.
Product enters the dual beam inspection zone. Dual bottom up beams project to the product at a 90° offset, achieving 100% inspection of the packaged product without any influence from the container material.

Even the most difficult or complex packages can be inspected with confidence with the segmented, multi-aspect principle of Triple Beam technology.

Standard Features

Each of our X-ray systems come with the training, service and support your staff needs — TDI Packsys is with you every step of the way to make sure you are 100% satisfied. Additionally, TDI Packsys provides annual testing, certification and maintains FDA registration to ensure your system remains in complete and continual compliance with all applicable regulations.

Full Range of Detection – Metallic and non-metallic contaminants including glass, ceramic, stone, bone, hard rubber and hard plastic.
Metal sensitivities to 0.3mm stainless steel, 0.2mm x 2mm steel wire
Defect Inspection – Detects breakage, displacement and cracks.
Easy to Use and Clean – Intuitive Windows®-based user interface, simple assembly and disassembly.
Does not require an operator to monitor for contaminants – System will automatically identify and, when paired without optional rejection conveyor, remove any packages suspected of having contaminants.
Flexible – Suitable for a wide range of product types and package formats.
Customizable Programming – TDI Packsys x-ray systems use proprietary software which allows custom generator strength, speed, and algorithms for each program.
Windows-Based Software – Easily navigated Windows-based software allows the user to quickly change between programs. A real-time image of the current product allows operators to quickly locate and identify contaminants.
Detailed Data Logs – TDI Packsys x-rays provide detailed logs on production rates, times and contamination %s which can be easily accessed on the HMI or downloaded via ethernet or USB.
Unmatched Performance – the best contaminant detection on the market, down to 0.3mm.
Remote technical and programming support to maximize uptime and performance
Password restricted operator / administrator access

All X-ray inspection systems use componentry from global market leaders, including VJT, Siemens and Schneider. Each unit is constructed of 304 stainless steel with a stunning mirror finish (optional sand-blasted finish available). X-ray inspection systems from TDI Packsys can be used in virtually any environment, and all areas are rated for full wash down with our IP69K option.

Why We Are the Best

TDI Packsys offers the most precise x-ray inspection systems on the market. When your application requires an exceptional level of metal detection sensitivity, or the ability to detect non-metallic contaminants such as bone, stone or even glass, then pharmaceutical or food x-ray inspection equipment is a necessity.

TDI Packsys offers a wide variety of systems that deliver best-in-class performance at a tremendous value. No other provider can match the level of safety and quality of inspection systems that TDI Packsys delivers. Our machines also provide a higher level of quality and performance features, such as unique triple-beam x-ray detection, for incredibly precise three-dimensional inspection.

If you are interested in seeing the superior performance of x-ray inspection systems from TDI Packsys, we offer free, no-obligation validation testing of your exact products and any contaminant samples you would like tested, in addition to our standard certified contaminant sample set. We simulate your exact production conditions and will provide photos, videos, and a formal report on the sensitivities you would be able to achieve with a TDI Packsys x-ray. Reach out today to get your validation test scheduled and see the real difference of TDI Packsys x-rays.

Is x-ray inspection safe?

The use of x-ray inspection is incredibly safe. Ambient x-ray emissions are less than 1 microsievert per hour, well below FDA standards. Both software and hardware are equipped with extensive safeguards, which constantly inspect the machine’s state, and prevent accidental emissions caused by operator error or system malfunction. For example, if the operator accidentally opens an access panel during operation, x-ray generation is stopped immediately. All TDI Packsys x-rays are FDA certified, and are compliant with all UK, EU and FDA regulations to ensure safe use. Radiation from TDI Packsys x-rays is produced by an electronic generator, rather than a radioactive material, which means there is no radiation being produced when the system is not running. During operation, radiation levels produced are incredibly low, and our intelligent body design and use of protective curtains in the product tunnel keep radiation to less than 1/5th the FDA allowable limit. Products inspected by x-ray systems remained unaltered after inspection, and are 100% safe for use or consumption. With the numerous safety features and redundancies, operating an x-ray inspection system is 100% safe for both people and products.

How do X-Ray Inspection Systems work?

X-ray inspection systems work by producing beams of high frequency electromagnetic radiation (x-rays) in a generator. These beams are then directed at a desired target, which will absorb some of the rays while allowing others to pass through. On the opposite side of the target from the generator sits a detector which then reads the EM waves that make it through the target.

The higher the density/larger the size of the product, the less radiation will pass through. The result is an image produced by the detector which details the high and low density areas throughout the target. This is the same principle seen when making shadow puppets on a wall. Some light is blocked by the puppet, and the resulting shadow gives detail on the shape of the puppet. With x-rays, that detail is also internal.

What is the difference between metal detection and x-ray inspection?

The main difference between metal detectors and x-ray inspection systems is in the methodology of how each machine inspects for foreign materials. Metal detection relies on conductivity to locate stainless, ferrous and non-ferrous metals in product, while x-ray uses density differences between the product and foreign bodies to perform inspection. X-ray technology allows for a far greater range of foreign materials to be detected, including metal, glass, stone, bone, rubber, gasket (both metal detectable and non-metal detectable), plastic, and various other mid and high-density items. As a general rule of thumb, x-ray inspection systems are able to detect contaminants at a much smaller size than metal detectors.

Some products are limited by their composition and packaging with which inspection systems can be used. Products with metallic packaging, such as those with metallized foil, cannot be accurately inspected with a metal detector, and require the use of an x-ray system. The best way to determine which option is best for your application is to receive a consultation or free, no-obligation validation testing. We can test your exact product on a variety of different systems using certified test cards, or foreign material samples you provide, to offer you a formal report on the capabilities and expected performance of each type of technology. At TDI Packsys, we believe validation testing on your specific products is an integral step in choosing the right system for your needs.

Do operators need to wear any specific PPE when operating an x-ray inspection system?

No PPE is required to be worn while operating x-ray inspection systems from TDI Packsys. The use of lead lining and protective curtains in the x-ray mitigates radiation from the generator, allowing only a fraction of the radiation used in inspection to exit the system. The FDA regulates these systems, and has set a standard of 5 μSv/hour as the safe level of radiation. X-ray systems from TDI Packsys emit doses of less than 1 μSv an hour, well below the FDA allowable limit. Every day, we are exposed to background radiation naturally produced by the sun and various environmental factors. Each year, the average person is exposed to 2,400 μSv of this background radiation, a higher dose than you would get standing next to an active x-ray inspection system for more than 3 months straight.

Is x-ray inspection safe for food? Are the products altered during the inspection process?

Food products inspected by x-ray remain unchanged. Because the radiation used in x-ray inspection systems is comparatively low to the natural background radiation found in every setting, there is no change to the nature of the product during x-ray inspection. There is also no possibility of the product itself becoming radioactive. The process by which stable compounds become radioactive is known as activation, and can only be caused by neutron radiation, a specific type of radiation that isn’t used for x-ray inspection. The type of radiation used by x-ray inspection systems is actually a type of light, with a wavelength longer than the visible light we are able to see. Because of this, exposure to the x-rays inside an inspection system is similar to taking a photo with the flash on: the product is quickly illuminated, but remains completely the same once the exposure is finished.

What materials are x-ray inspection systems able to detect?

X-ray systems from TDI Packsys are able to detect a range of materials in clean products, including stainless steel, ferrous metal, nonferrous metal, glass, ceramic, stones, bone, rubber, gasket (both metal detectable and non), plastics, and some organic materials. The exact size and range of materials able to be detected by x-ray varies by product type and specific process, and our formal no-obligation validation test is the best way to determine what is possible for your products. TDI Packsys consistently detects materials and sizes that other vendors cannot. For more information on what can be detected in your process, contact us for a free consultation or a validation test.

How much do x-ray systems cost?

While all x-ray equipment utilizes the same advanced technology to inspect products, the actual components used and the size of the equipment has a significant impact on the price of the x-ray system. Stronger generators, higher configuration detectors, and more advanced software will all increase the cost of an x-ray system. For products that are low format and don’t need the same power as other, denser packages, TDI Packsys proudly offers our XE series of economical x-rays that start around $38,000. These systems, while being economically priced, still offer exceptional sensitivities on all the same foreign material types as our other x-ray systems. Like all industrial equipment, if specific construction is required to raise the IP rating for washdown environments, or to modify the integration of the system, you can expect to see a marginal increase in price. The easiest way to determine exactly how much the right x-ray system would cost for your specific application is to contact us for a no-obligation consultation and system proposal.

Spec Table

Name	Triple Beam X-Ray Inspection System
Model	RXP-2025SO
X-Ray Tubes	100Kv, 480W, (2) / 80Kv, 210W (1)
Inspection Width	160mm (6.20 in)
Inspection Height	260mm (10.23 in)
Detection Sensitivity without product	SUS Ball Φ 0.3mm SUS Wire Φ 0.2 * 2mm Ceramic Φ 1.5mm Glass Φ 1.5mm
Conveyor Speed	5 – 60 meters / minute
Display Screen	Full-color TFT 17″ Touch Screen
Operating System	Windows 7 Professional
Connectivity	USB and Ethernet
Product Management	Complete production log
Image Management	Save/Print/Analyze
Power	220V, Single Phase, 25 amp
Air Pressure	0.6 – 0.8 Mpa
Construction	SUS 304 matte finish
Rejecter	High speed push exclusion
Temperature Control	Integrated Industrial Air Conditioner
Safety	Cat 3 Safety Circuit
Certifications	FDA CFR 21.1020.4 compliant
