E2M Quadraturn Product Orientation Systems

E2M Quadraturn Product Orientation Systems

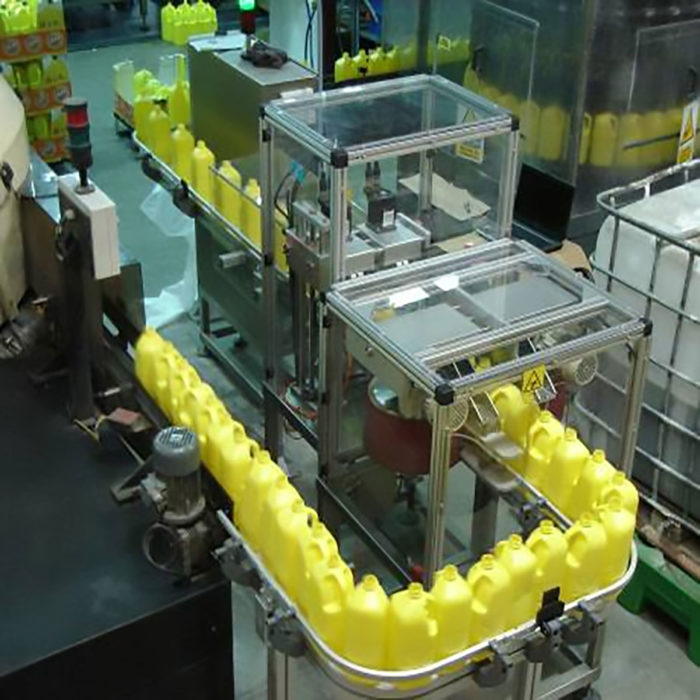

A flexible packaging guide with two side bands, the Quadraturn is capable of rotating each container at the appropriate angle independently, ensuring that all are oriented in the correct position, such as the longest side face parallel to the direction of travel. Read More
  • This field is for validation purposes and should be left unchanged.

Table of Contents

Standard Features

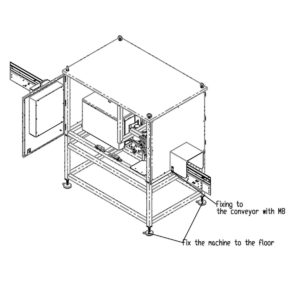

  • Easy assembly on the existing conveyor
  • Velocity up to 40,000 bottles/hour
  • Up to 5 progressive digital cameras, monochrome, 1.3 megapixels
  • 17″ touch screen
  • 300 x 300 mm stainless steel case with IP66 protection

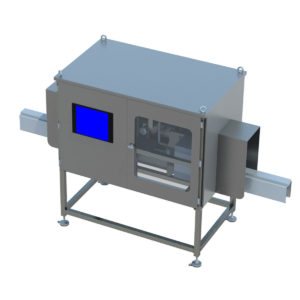

  • Self-supporting cabinet in satin polished stainless steel 1600 x 1000 x 400 mm
  • Core PC i7 of last generation
  • Security system for the doors of the counselor
  • Windows 10 operating system
