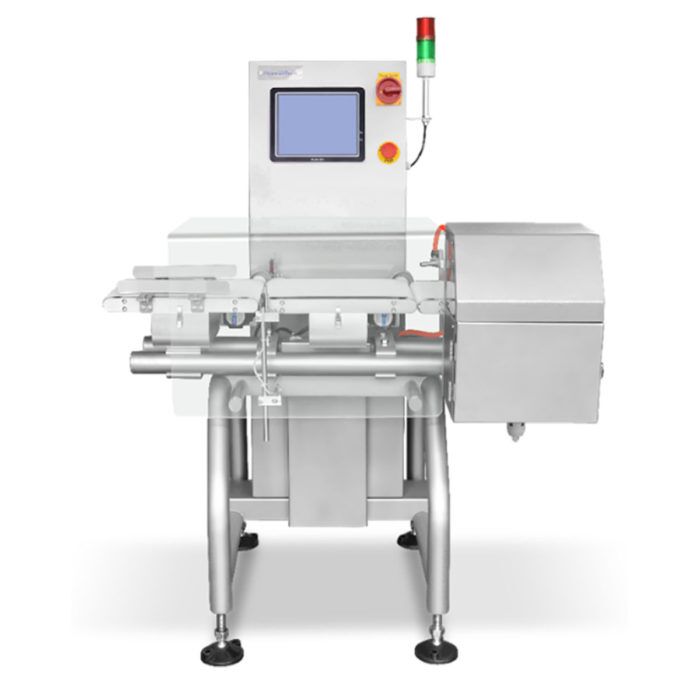

RWG High-Configuration Checkweighers

RWG High-Configuration Checkweighers

The RWG series of high-configuration checkweighers from TDI Packsys are extremely durable and robust. Use them to dynamically weigh products to an accuracy of ±0.02 ounces. Systems are easy to operate, and feature heavy-duty construction for use in a wide range of environmental conditions. Read More
  • This field is for validation purposes and should be left unchanged.

Table of Contents

The RWG series of checkweigher systems are an extremely durable and robust product line having the ability to dynamically weigh products to an accuracy of ±0.02 ounces. The RWG series is easy to operate, incorporating user friendly features such as auto-product learning functionality. Available in optional IP66 construction, the RWG can be used in a wide range of environmental conditions.

Fabricated from heavy gauge 304 stainless steel, the RWG is ideally suited for even the most demanding production conditions.  Advanced auto-balancing allows the RWG to perform at a consistently high level for years and years.


Checkweighing systems can be used for virtually any product in any production process where ensuring accurate weight is necessary.

Available in both a standard and high-speed configuration, RWG series checkweighers can weigh up to 330 products per minute, and can accommodate products weighing as much as 110 lbs (50kg).

Standard Features

  • Superior Performance – Inline check weighing for packaged products; lowers product waste/loss and improves efficiency
  • Quick and Accurate – Self-controlled operation; unique signal processing and auto-zeroing technology ensures product weighing accuracy even with seafood or marinated products
  • Flexible – Suitable for packaged products
  • Reliable – Stable design maintains accuracy without frequent calibration
  • Detection Integration – Seamlessly pairs with metal detectors for a complete product inspection system
  • Advanced Features – Quick product switching, robust data collection and analysis, multi-language operator controls and more
  • Italian Engineering and Design
  • Large, Intuitive Operator Panel
  • German Load-Cell
  • Oriental Motor (Brushless – 24V DC Motors)
  • Multiple Language Options
  • High-Speed, Sensitivity and Stability
  • Easy to Disassemble and Clean
  • Can be Integrated with Network for Real-Time Monitoring and Reporting

Why We Are the Best

All of our checkweighers are easy to clean, provide full-color touchscreen controls for each operation, and use high-sensitivity load cells or scales that do not need daily calibration. Plus, TDI Packsys backs every piece of equipment with unmatched support, including annual testing, operator training, emergency service, calibration and certification to ensure your system remains in complete and continual compliance with all applicable regulations.

Let us help you get the checkweigher equipment that best fits your needs.


A checkweigher is a machine that serves as an automated scale, and weighs packaged products to ensure they are the correct weight. Checkweighers are commonly used in food manufacturing towards the end of the production process to check for products that are either underweight or overweight. Many checkweighers have automatic reject mechanisms that can remove underweight or overweight products from the production line without the need for an operator or for production to stop.

Spec Table

Scale Range10-600g20-2000g20-10000g20-2000g20-5000g
Maximum Accuracy (3σ)±0.1g±0.2g±1g±0.2g±0.5g
Max Weigh Speed250 pcs/min200 pcs/min105 pcs/min155 pcs/min140 pcs/min
Operator Interface10-inch Touchscreen
Maximum Product Width150mm220mm390mm220mm290mm
Maximum Product Length200mm250mm500mm350mm400mm
Pre-Set Programs100
Belt Speed70m/min70m/min60m/min70m/min70m/min
Scale Platform Width160mm230mm500mm230mm300mm
Scale Platform Length270mm350mm800mm450mm500mm
Rejecter ModeAuto Reject
Power SupplyAC220V
Working Environment

Temperature: 32~104°F

Humidity: 30~85%

IP LevelIP30/IP54/IP66
Main MaterialSUS304 Sandblasted
